1K pump covers,body,and pressure loaded bearing blocks are made with high quality aluminum metals.precision machined
one piece steel gears guarantee the highest performance standard available.Honor gear pumps are well suited for both industrial
and mobile applications,and are very competitive so you can meet the competition with a goodprice advantage.
|
Further Information
How to order：
| 1 |
K |
H |
1 |
K |
01 |
R |
| Model |
Model/Function |
Front cover |
Shaft extension |
Oil port |
Model |
Rotation |
| 1 |
K |
H |
1 |
Refer to specification |
0S
01
13
16
02
26
03
37
04
05
06
07
09 |
L:Left
R:Right |
Specification：
| Model |
Delivery
(mℓ/rev) |
Max.Pressure (kgf/cm2) |
Speed range |
Dimension figure |
Weight kg |
Port |
| Continuous |
Max |
L |
| 0S |
0.8 |
21 |
25 |
600-4000 |
72.48 |
0.76 |
Inlet
PT3/8"
Outlet
Ø9 |
| 01 |
1.1 |
21 |
25 |
600-4000 |
73.48 |
0.78 |
| 13 |
1.3 |
21 |
25 |
600-4000 |
74.48 |
0.80 |
| 16 |
1.6 |
21 |
25 |
600-4000 |
75.48 |
0.82 |
| 02 |
2.1 |
21 |
25 |
600-4000 |
77.48 |
0.86 |
| 26 |
2.6 |
21 |
25 |
600-4000 |
79.48 |
0.90 |
| 03 |
3.2 |
21 |
25 |
600-4000 |
81.48 |
0.94 |
| 37 |
3.7 |
21 |
25 |
600-4000 |
83.48 |
0.98 |
| 04 |
4.2 |
18 |
21 |
600-2500 |
85.48 |
1.02 |
| 05 |
4.8 |
18 |
21 |
600-2500 |
87.48 |
1.06 |
| 06 |
5.8 |
18 |
21 |
600-2500 |
91.48 |
1.14 |
| 07 |
7.9 |
18 |
21 |
600-2500 |
99.48 |
1.30 |
| 09 |
8.8 |
18 |
21 |
600-2500 |
103.48 |
1.38 |

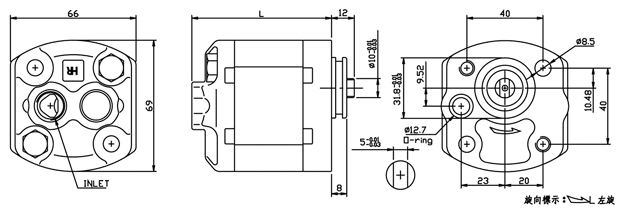

Dimension figure：
Function curve：
|
Remarks：
