Index > Pressure Gauges With Electric Contacts > EDT
Pressure Gauges With Electric Contacts
1、Pressure gauge and the power of the combination of the total electrical surface, the pointer can be set on or off, and can do single or multiple alerts.
2、Use of magnetic contacts, when the pressure is bigger, it can avoid the frequent opening and closing switch. And damage the system.
3、An accuracy of plus or minus 1.5% F, S, non-electric can compare with the normal stresses of the total.
4、Sealed construction, moisture-proof, anti-pressure, stainless steel shell with acid, alkali, anti-corrosion properties.
5、Sophisticated structure and special material in the Baden-tube structure, long life and high accuracy.
6、This series of electric contact pressure gauge using the German WIEBROCK produced calculating, superior performance, normal use, to ensure more than 100 million times, quality go hand in hand with world-renowned brands.
 Further Information
How to order:
EAT -100 35K -A1 -T -04 -1
Series number Dial size Pressure range Mounting type Connection type Connector size Connection type

EAT:vertical
mounting
EDT:horizontal
mounting

Φ75
Φ100
Kgf/cm²
35
50
70
100
150
250
350
500
MPa
3.5
5.0
7.0
10.0
15.0
25.0
35.0
50.0

A1:vertical
mounting
B2:horizontal
mounting

T:PT 02:1/4"
(Ø75)
04:1/2"
(Ø100)

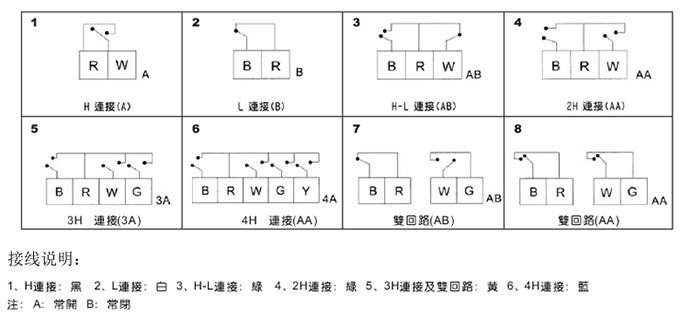

1-8as bellow
list

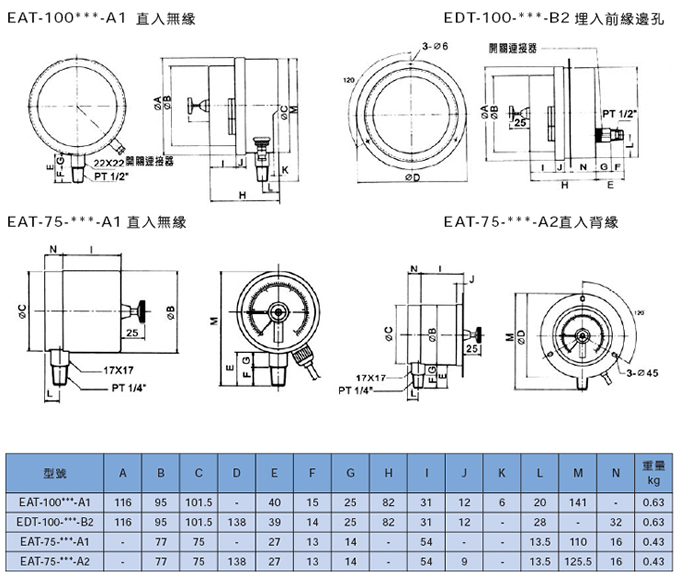

Dimension figure:
Manufacturing Specifications:
1、Case: Stainless steel AISI 304, provides straight-in, and submerged.
2、Baden-tube: copper or phosphor bronze.
3、Inside the machine: copper.
4、Connector parts: copper, 1 / 4 ", 3 / 8", 1 / 2 ", NPT, PT, PF.
5、Accuracy: standard plus or minus 1% F, S
6、Scale unit: standard of kgf / cm 2 / psi
7、Explosion-proof Kong: Oil sealed explosion-proof side holes to prevent over use of. Can replace the glycerin.
9、Normal working temperature: -20 ° ~ 70 degrees.
Note: 1, the company with shell, Baden tube, inside the machine, all stainless steel fittings for the petrochemical industry, please appropriate for our company.
2、The Company's standard pressure range Kgf / cm 2 / psi pairs of scale, if you need Bar and MPa, please contact our technical department.
