Index > Pilot Operated Relief Valves > BG
Pilot Operated Relief Valves
1、Pumps and control valves limit the maximum pressure on the hydraulic system to maintain a certain pressure.
2、Use remote control valve for remote control or uninstall.
3、Installation dimensions in line with ISO6264 standards.
 Further Information
How to order：
B -06 B G
Series number Valve size Pressure adj.
 Range		 Type of
 connection
BG 03：3/8"
06：3/4"
10：11/4"		 B:10-70kgf/cm2
C:35-140kgf/cm2
H:70-250kgf/cm2

G:sub-plate
 type
Specification：
Model Rated flow ℓ/min Max.operating
pressure mpa		 Pressure adj.
 Range		 Weight kg
BG-03 100 25 B：1∼7
C：3.5∼14
H：7∼25		 5.0
BG-06 200 25 6.0
BG-10 400 25 8.7

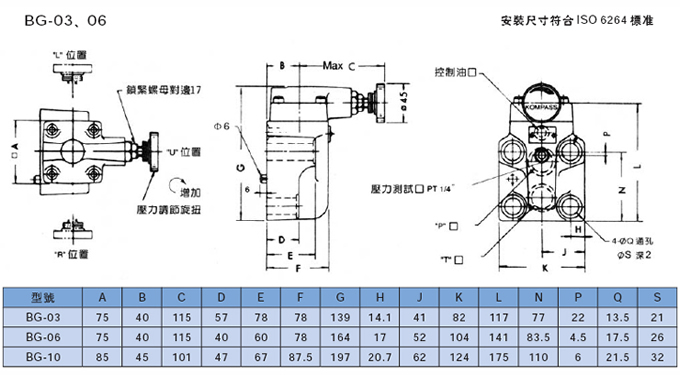

Dimension figure：
Remarks：Pilot Operated Relief Valves,The related model:BG-03,BG-06,BG-10
