Index > Rubber Coupling > NM
Rubber Coupling
1、The rubber coupling using a combination of castings and rubber.
2、Processing and assembly easy, and adjustable range of high eccentricity.
 Further Information
How to order:
NM -97
Series number Size
NM Refer to specification
Specification:
Model

Horse power

Torque Maximum Speed Bore range Size Weight kg
General Max Min Max D ØD ØL S
NM-50 0.5 13 23 13,500 7 19 33 50 25 2.0+0.5 0.48
NM-67 1.0 22 40 10,000 9 28 46 67 30 2.5+0.5 1.02
NM-82 2-3 50 90 8,000 10 32 53 82 40 3.0+1.0 0.88
NM-97 5-7.5 105 190 7,000 12 42 69 97 50 3.0+1.0 3.54
NM-112 10-15 167 300 6,000 14 48 79 112 60 3.5+1.0 5.4
NM-128 20 267 480 5,000 18 55 90 128 70 3.5+1.0 8.1
NM-148 30 417 750 4,500 22 65 107 148 80 3.5+1.0 13.5
NM-168 50 695 1250 4,000 28 75 126 170 90 3.5+1.5 19.3
NM-194 75 1120 2000 3,500 32 85 140 194 100 3.5+1.5 26.3
NM-214 100 1670 3000 3,000 45 95 157 214 110 4.0+2.0 35.7
NM-240 125 2670 4800 2,750 60 110 179 240 120 4.0+2.0 46.7
NM-265 150 4170 7500 2,500 70 120 198 265 140 5.5+2.0 66.3

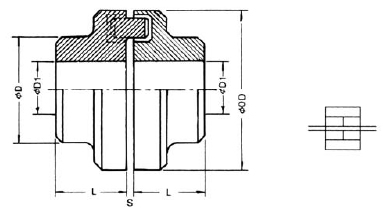

Dimension figure:
RemarksRubber Coupling,The related model:NM-50,NM-67,MN-82,MN-97,NM-112,NM-128,NM-148 and so on
