1、Quantitative gear pump motor is designed to direct one, is not only easy to use, but it will save installation space
2、This variable gear pump motor pump group of high concentricity to reduce the noise
3、If the motor control mode or a combination of special above the following models, please contact us
|
Further Information
How to order：
| MP |
3P |
4H |
523 |
+K1P |
| Series number |
Horsepower |
Motor type |
Electric power |
Combine pump model |
| MP |
1P：1HP
2P：2HP
3P：3HP
5P：5HP |
V：Verticle
H：Horizon
S：Submersued
Poles
6：6 Poles
4：4 Poles
2：2 Poles |
523：50HZ 220V-380V
524：50HZ 220V-440V
623：60HZ 220V-380V
624：60HZ 220V-440V
512：50HZ 110V-220V
612：60HZ 110V-220V |
K1P
SGP1A-**
PLS-** |
Specification：
| Model |
Unloading Delivery |
Electric motors model |
Pump model |
| MP-*P-4H523+K1P |
1.09～10.77 |
3P4 H 380V/50HZ
(1HP、2HP、3HP、5HP) |
K1P |
| MP-*P-4H523+SGP1A |
11～19.5 |
PLS |
| MP-*P-4H523+PLS |
22～32 |
SGP1A |

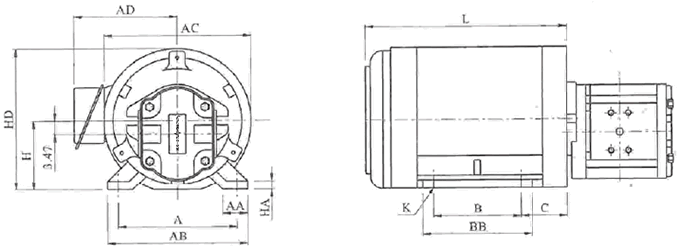

Dimension figure：
| Model |
A |
AA |
AB |
AC |
AD |
B |
BB |
C |
H |
HA |
HD |
K |
L |
| MP-1P-4H523+K1P-*-* |
125 |
35 |
155 |
175 |
135 |
100 |
130 |
54 |
80 |
10 |
168 |
10 |
235 |
| MP-2P-4H523+K1P-*-* |
140 |
35 |
170 |
196 |
147 |
125 |
152 |
57 |
90 |
11 |
168 |
12 |
278 |
| MP-3P-4H523+K1P-*-* |
160 |
40 |
196 |
219 |
162 |
140 |
177 |
65 |
100 |
14 |
188 |
12 |
303 |
| MP-5P-4H523+K1P-*-* |
190 |
40 |
224 |
235 |
165 |
140 |
175 |
73.5 |
112 |
14 |
210 |
12 |
322 |
|
Remarks：Motor and Vane Pump,The related model:MP-1P-4H523-K1P,MP-2P-4H523-K1P,MP-3P-4H523-K1P and so on
