Index > Variable Displacement Double Vane Pumps > VD2D2

Variable Displacement Double Vane Pumps：

1、This series of variable vane pump is driven by two pumps connected as one, with a direct drive motor can reduce the number of motors.
2、To make the most rational use of power effectively reduce electrical power consumption, save energy.
3、Can simultaneously provide the system pressure source, simplifying oil circuit design and improve reliability.
4、Can be connected directly to motor, easy to install.
5、Be widely used in grinding machines, automatic lathes, shoes, machines and other machinery.
6、Can be connected directly to motor, easy to install.

Further Information

How to order：

VD2VD2	-3030	A3-A3	F
Model	Delivery (mℓ/rev)	Pressure adjusting range	Mounting type
VD2D2 VE2E2 VF2F2 VK2K2	Refer to specification	A3:3.5-105kgf/cm² A4:70-140kgf/cm²	F：Flange mounting type L：Foot mounting type

Specification：

Model	Max.operating pressure mpa	Delivery of unloading		Pressureadj.range (kgf/cm²)	Speed range rpm		Ports size			Weight kg
Model	Max.operating pressure mpa	1500rpm	1800rpm	Pressureadj.range (kgf/cm²)	Max	Min	Out	In	Dr.	Flange type
VD2D22020F-A*	14	16.6+16.6	20+20	A2:2-7 A3:3.5-10.5 A4:7-14	1800	800	1/2"	3/4"	3/8"	20
VD2D2-2525F-A*	14	20.8+20.8	25+25		1800	800	1/2"	3/4"	3/8"	20
VD2D23030F-A*	14	25+25	30+30		1800	800	1/2"	3/4"	3/8"	20
VD2D2-4040F-A*	10.5	33.3+33.3	40+40		1800	800	1/2"	3/4"	3/8"	20
VD2D2-5454F-A*	14	45+45	54+54		1800	800	3/4"	1"	3/8"	50
VD2D2-7070F-A*	10.5	58.3+58.3	70+70		1800	800	3/4"	1"	3/8"	50

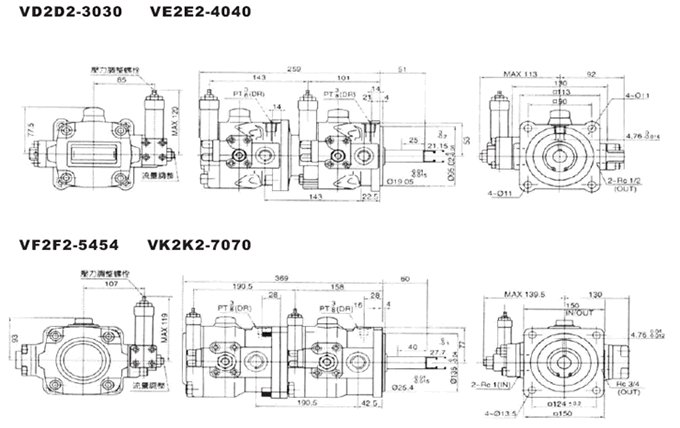

Dimension figure：

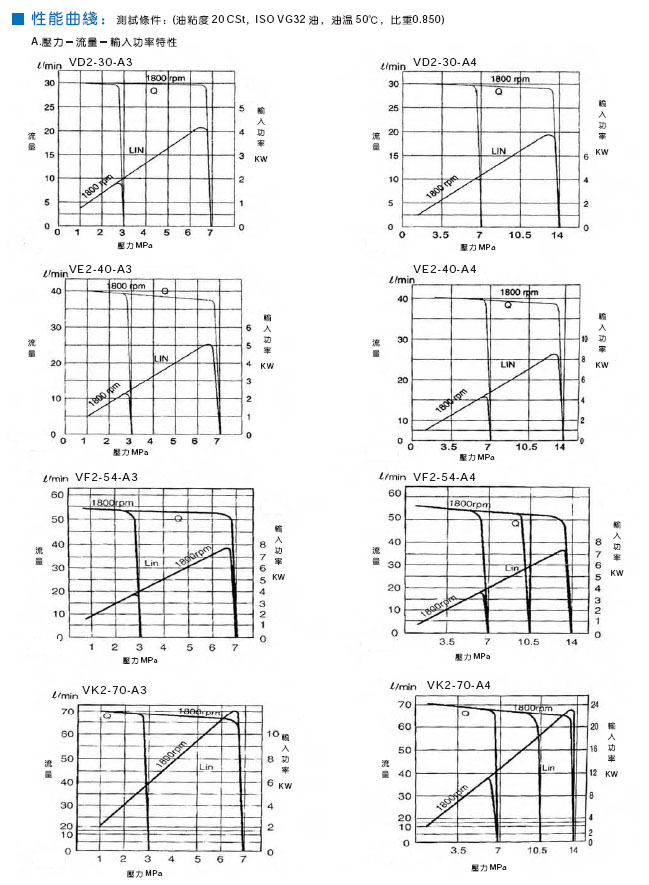

Function curve：

Remarks：Variable Displacement Double Vane Pumps,The related model:VD2D2-2020F,VD2D2-2525F and so on
