Motor and Lubricate Pump Assembly：

1、Small size, low noise. Easy to install.
2、For high concentrations of oil.
3、Mechanical lubricating device for filtration systems and cooling system.

Further Information

How to order：

VOP	-206	-A2	-F	-RV
Series number	Delivery (mℓ/rev)	Pressure adj.range	Mounting type	Relief valves
VOP	Refer to specification	A：3-8 B：5-20 C：15-30	F：Flange mounting type	Rv: With-without

Specification：

Model	Delivery (mℓ/rev)			Speed range	Max.Pressure(kgfcm²)	Weight kg
Model	cc/rev	ℓ/1500rpm	ℓ/1800rpm	Speed range	Max.Pressure(kgfcm²)	Weight kg
VOP-203	3	4.5	5.4	1800	2.5	3.7
VOP-204	4	6.0	7.2	1800	2.5	3.7
VOP-206	6	9.0	10.8	1800	2.5	4.0
VOP-208	8	12.0	14.4	1800	2.5	4.2
VOP-210	10	15.0	18.0	1800	2.5	4.3
VOP-212	12	18.0	21.6	1800	2.0	4.5
VOP-216	16	24.0	28.8	1500	2.0	4.8
VOP-220	20	30.0	36.0	1500	1.5	5.3

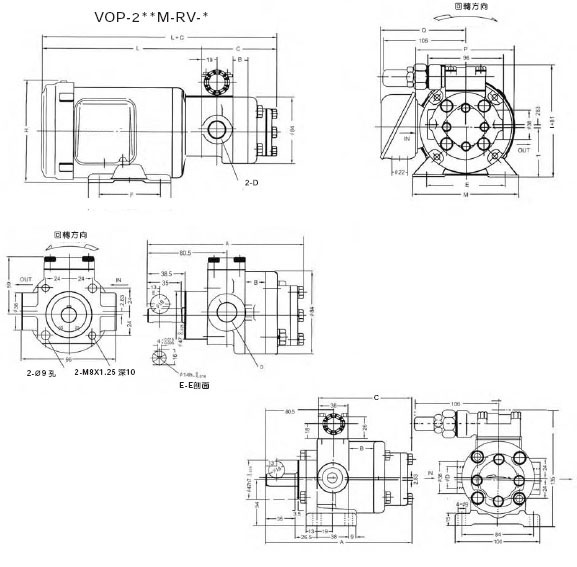

Dimension figure：

Remarks：Motor and Lubricate Pump Assembly,The related model:VOP-203,VOP-204,VOP-206,VOP-208,VOP-210 and so on
