Fix Displacement Double Vane Pumps：

1、This pump is composed of two independent 50T, 150T-type vane pump assembled in series, using the same motor drive, with two out of the oil ports, respectively to two separate oil circuits.
2、This two-cylinder pump for simultaneous action loop, such as special machines, machine tools and so on.

Further Information

How to order：

150T+50T	-48	R	-L	+07
Series number	Delivery (mℓ/rev)	Shaft rotating(view from shaft end)	Mounting type	Small delvery
50T+50T 150T+50T 150T+150T	Refer to specification150T	R:Clockwise L:Counter-clockwise	F：Flange mounting type L：Foot mounting type	Refer to specification50T

Specification：

Model	Max.operating pressure mpa	Delivery mℓ/rev		Ports size（pt）		Weight kg
Model	Max.operating pressure mpa	Big delvery	Small delvery	Max	Min	Flange type	Foot type
50T+50T	7	同50T	同50T	1500	600	18	21
150T+50T	7	同150T	同50T	1500	600	34	35.5
150T+150T	7	同150T	同150T	1500	600	47	48.5

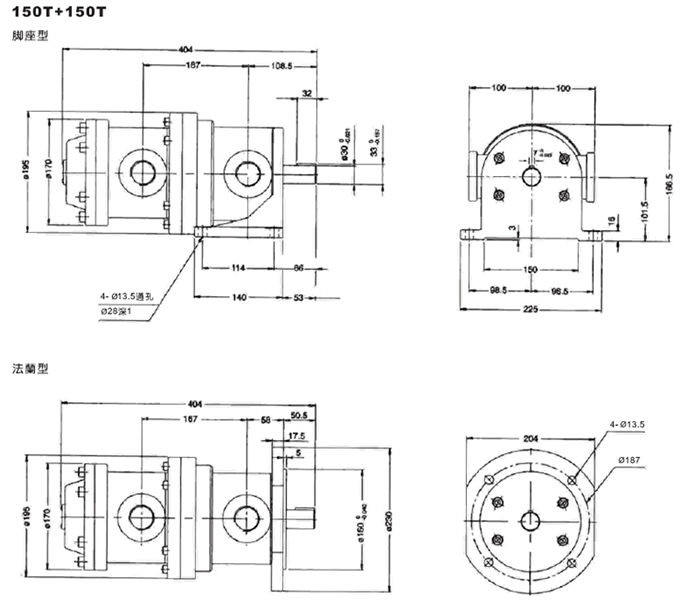

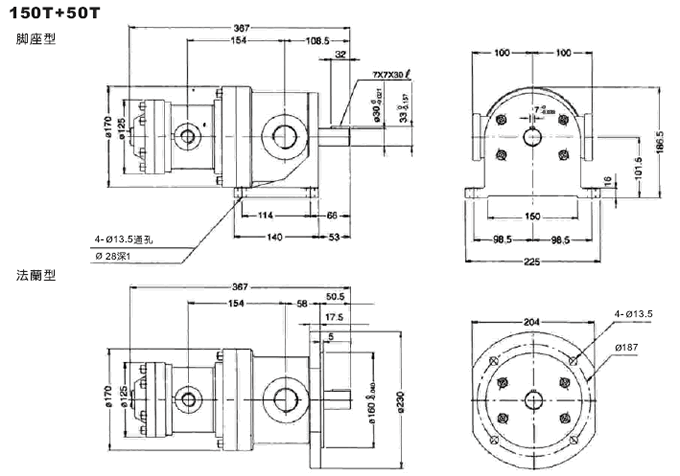

Dimension figure：

Remarks：Fix Displacement Double Vane Pumps,The related model:50T-50T,150T-50T,150T-150T and so on
