Modular Base Plates：

1、Standardized processing and pitch through the hole may be the superposition of stacking ISO 4401 standard valves. 1 / 4 "size up to 7-pass, 3 / 8" size up to 6 pass.
2、Body can withstand high pressure, this has Black manganese phosphate surface treatment, may rust.

Further Information

How to order：

MMC	B	-02	-3
Series number	Inlet & outlet	Valve size	Number of stations
MMC	-;Standand B: port up A:port up	02： PT 1/4" 03： PT 3/8"	02:1～7 03:1～6

Specification：

Model	Rated pressure mpa	Max.flow ℓ/min	Number of stations
MMC-02	25	02:35	02:1～7
MMC-03	25	03:80	03:1～6
MMC-04	25	04:160	04:1～5
MMC-06	25	06:190	06:1～4

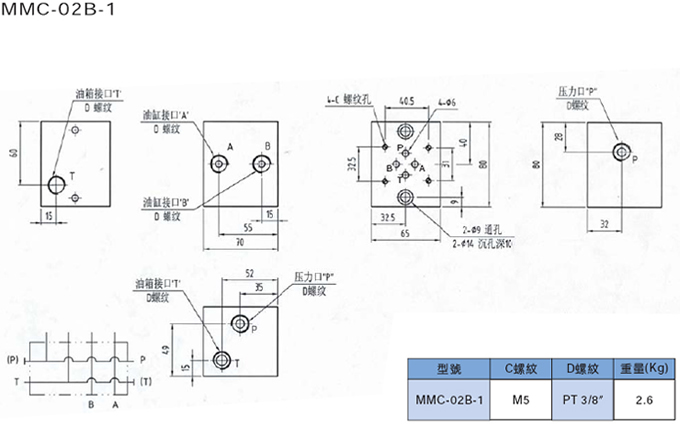

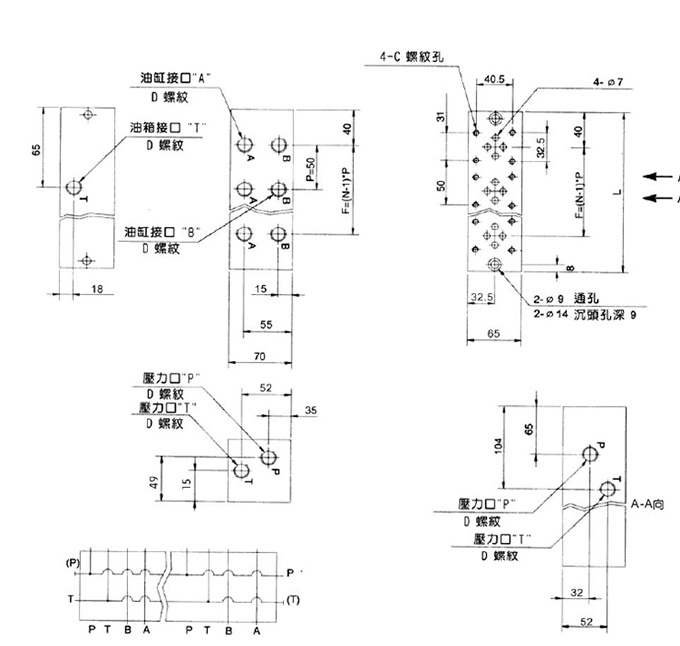

Dimension figure：

Use announcements：

1、Max Pressure：30MPa
2、Max flow： 02：40ℓ/min 03：80ℓ/min
3、A, B entrance Location: Standard Specification for B in the other specifications, please contact our technical department。
4、Oil port thread standard for PT, NPT and BSP, please contact our technical department.

Remarks：Modular Base Plates,The related model:MMC-02,MMC-03,MMC-04,MMC-06
