Index > Pilot Operated Relief Valves > BHG
Pilot Operated Relief Valves
1、Protection of pumps and control valves so as to avoid overpressure, and to maintain a constant pressure hydraulic system.
2、Use remote control valve for remote control or uninstall
3、Installation dimensions in line with ISO6264 standards.
 Further Information
How to order：
BH -06 B G
Series number Valve size Pressure adj.
 Range		 Type of
 connection
BH 06:25 (3/4")
10:32 (11/4")		 B:10-70kgf/cm2
C:35-140kgf/cm2
H:70-250kgf/cm2		 G:sub-plate
 type
Specification：
Model Rated flow ℓ/min Max.operating
pressure mpa		 Pressure adj.
 Range mpa		 Weight kg
BHG-06 200 25 B：1-7
C：3.5-14
H：7-25		 7.2
BHG-10 400 25 12.0

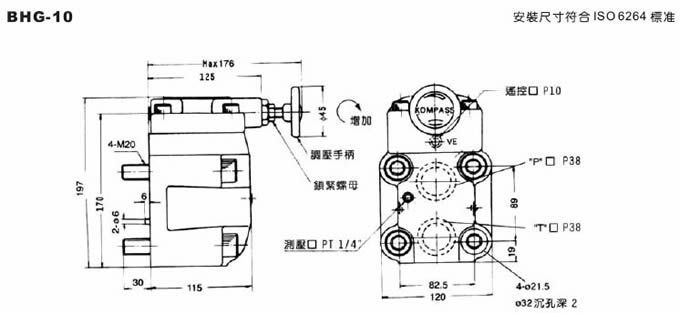

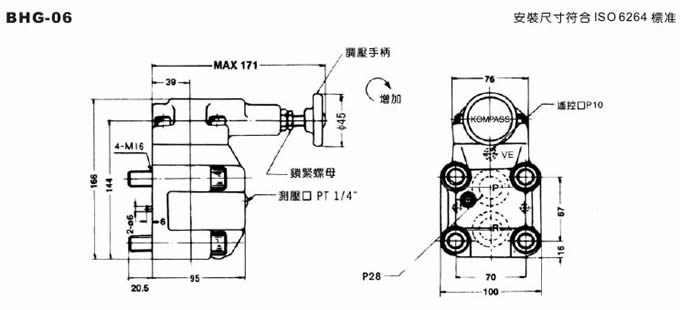

Dimension figure：
Remarks：Pilot Operated Relief Valves,The related model:BHG-06,BHG-10
