1、Variable vane pump motor is designed to direct one, is not only easy to use, but it will save installation space
2、Concentricity high, noise reduction。
3、If the motor control mode or a combination within the following specific models, please contact us.
|
Further Information
How to order：
| MP |
3P |
4H |
523 |
+30L |
| Series number |
Horsepower |
Motor type |
Electric power |
Combine pump model |
| MP |
1P：1HP
2P：2HP
3P：3HP
5P：5HP |
V：Verticle
H：Horizon
S：Submersued
Poles
6：6 Poles
4：4 Poles
2：2 Poles |
523：50HZ 220V-380V
524：50HZ 220V-440V
623：60HZ 220V-380V
624：60HZ 220V-440V
512：50HZ 110V-220V
612：60HZ 110V-220V |
12L：VA1
15L：VA1
20L：VB1
30L：VD1
40L：VE1 |
Specification：
| Model |
Electric motors type |
Kw |
Pump model |
| MP-1P-4H523+VA1 |
1HP4P3 Ø 380/50Hz |
1HP |
VA1-12FA |
| MP-2P-4H523+VA1 |
2HP4P3 Ø 380/50Hz |
2HP |
VA1-15FA |
| MP-2P-4H523+VB1 |
2HP4P3 Ø 380/50Hz |
2HP |
VB1-20FA |
| MP-3P-4H523+VD1 |
3HP4P3 Ø 380/50Hz |
3HP |
VD1-30FA |
| MP-5P-4H523+VE1 |
5HP4P3 Ø 380/50Hz |
5HP |
VE1-40FA |

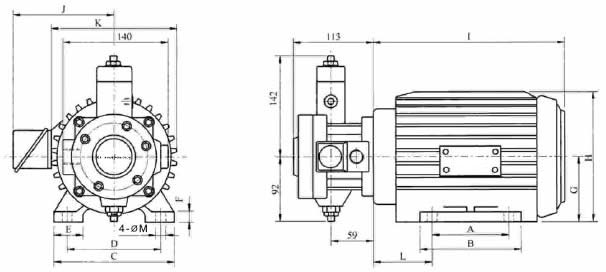

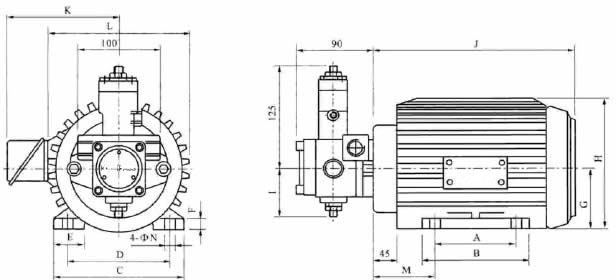

Dimension figure：
| Model |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
øM |
N |
| MP-1P-4H523+VA1-12 |
100 |
130 |
155 |
125 |
35 |
8 |
80 |
169 |
46 |
234 |
146 |
180 |
50 |
10 |
| MP-2P-4H523+VA1-12 |
125 |
155 |
170 |
140 |
35 |
10 |
90 |
190 |
46 |
281.5 |
155 |
200 |
57 |
10 |
| MP-1P-4H523+VB1-20 |
100 |
130 |
155 |
125 |
35 |
8 |
80 |
169 |
60 |
234 |
146 |
180 |
50 |
10 |
| MP-2P-4H523+VB1-20 |
125 |
155 |
170 |
140 |
35 |
10 |
90 |
170 |
60 |
281.5 |
155 |
200 |
57 |
10 |
| Model |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
øM |
| MP-2P-4H523+VD1-30/40 |
125 |
155 |
170 |
140 |
35 |
10 |
90 |
190 |
281.5 |
155 |
200 |
57 |
10 |
| MP-5P-4H523+VD1-30/40 |
140 |
176 |
196 |
160 |
45 |
12 |
100 |
247 |
312 |
168 |
225 |
68 |
12 |
| MP-6P-4H523+Vd1-30/40 |
140 |
172 |
226 |
190 |
45 |
15 |
112 |
267 |
335 |
173 |
230 |
80 |
12 |
|
Remarks：Motor and Vane Pump,The related model:MP-1P-4H523-VA1,MP-2P-4H523-VA1,MP-2P-4H523-VB1,MP-3P-4H523-VD1
