Index > Pressure Switch > MJCS

Pressure Switch：

This valve containing micro-switch from the hydraulic system pressure sensor to convey electrical signals to the solenoid valve or electrical motors, switch direction or warning them to change the oil line shut down in order to achieve the effect of system security.

Further Information

How to order：

MJCS	-02	-NL
Series number	Size	Pressure adj.range mpa
MJCS	02： 1/4" 03：3/8"	HM：3∼21 L： 2.5∼6 LL： 0.5∼6 S： 0.4∼2.6 N： 3∼21 NL： 2.5∼6

Specification：

Model	Pressure adj.range mpa	Max.operating pressure mpa	Weight kg
MJCS-02P-N	3-21	21	1.8
MJCS-02A-N	3-21	21	1.8
MJCS-02B-N	3-21	21	1.8
MJCS-02-P-L	2.5-6	21	1.8
MJCS-02-A-L	2.5-6	21	1.8
MJCS-02-B-L	2.5-6	21	1.8
MJCS-02P-LL	0.5-6	7	1.8
MJCS-02A-LL	0.5-6	7	1.8
MJCS-02B-LL	0.5-6	7	1.8
MJCS-03P-N	3-21	21	2.8
MJCS-03A-N	3-21	21	2.8
MJCS-03B-N	3-21	21	2.8
MJCS-03P-L	2.5-6	21	2.8
MJCS-03A-L	2.5-6	21	2.8
MJCS-03B-L	2.5-6	21	2.8
MJCS-03P-LL	0.5-6	7	2.8
MJCS-03A-LL	0.5-6	7	2.8
MJCS-03B-LL	0.5-6	7	2.8

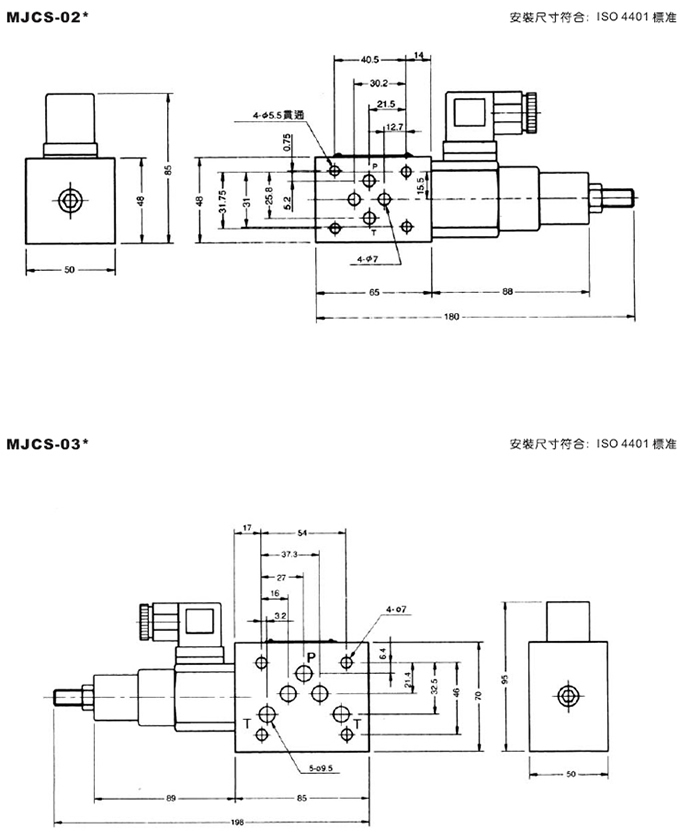

Dimension figure：

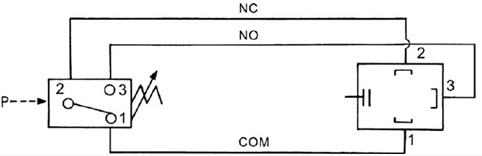

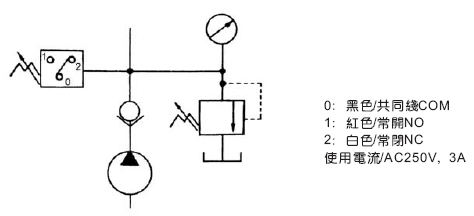

液压符号：

Remarks：Pressure Switch,The related model:MJCS-02P-N,MJCS-02A-N,MJCS-02B-N,MJCS-02W-N,MJCS-02-P-L and so on
