Index > Gear pumps > HGP-2A

Gear pumps：

HGP~2ASeries
Max Pressure∶250bar (3500psi)
Flow Amount∶2cc / rev–12cc / rev
Flange Type∶JIS4hole

Further Information

How to order：

HGP	2A	F	08	R	X	4BJ
Series number	Size series	Mounting type	Delivery (mℓ/rev)	Shaft rotating	Haft hp1	Flange type
HGP-2A	2series	F:Flange mounting type L:Foot mounting type	2:2cc / rev 3:3cc / rev 6:6cc / rev 8:8cc / rev 9:9cc / rev 11:11cc / rev 12:12cc / rev	(View from shaft end ) R:Clockwise L:Counter	X:Straight shaft L:Spline shaft	4BJ:JIS 4 bolt

Specification：

Model	Unloading delivery	Pressure		Spead range			Weight kg
Model	Unloading delivery	Work	Max	Rate	Max.	Min.	Weight kg
HGP–2A–2	2	210 (3000)	250 (3500)	1800	5000	900	1.63
HGP–2A–3	3				5000	850	1.65
HGP–2A–4	4				4500	800	1.67
HGP–2A–6	6				3500	700	1.69
HGP–2A–8	7.5				3000	600	1.72
HGP–2A–9	9	175 (2500)	210 (3000)		2500	550	1.75
HGP–2A–11	10.5				2000	550	1.77
HGP–2A–12	12				2000	550	1.80

Dimension figure：

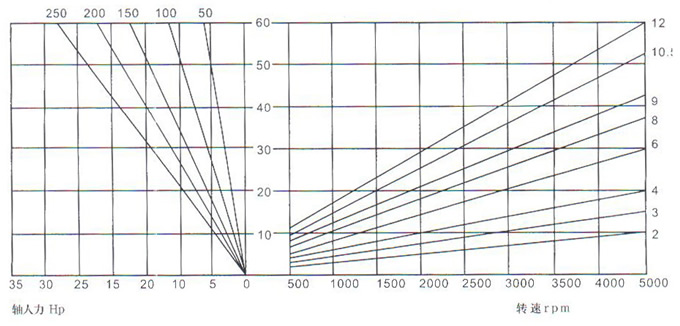

Function curve：

Remarks：Gear pumps,The related model:HGP-2A-F2R,HGP-2A-F3R,HGP-2A-F4R,HGP-2A-F6R and so on
