1、When the pressure exceeds a set opening pressure of the spring, oil can flow freely through the reverse direction is totally can not.
2、There are two options open pressure, in addition to the role of one-way valve, the valve can be used as a safety valve or backpressure.
3、CRNG Series installation dimensions comply with ISO-5781 standard.
|
Further Information
How to order：
| CRG |
-06 |
-A1 |
| Series number |
Valve size |
Cracking pressure |
CIT：Thread type(crng)
CRG：Sub-plate type
CRNG：ISO Sub-plate type |
03：3/8" 04：1/2"
06：3/4" 08：1"
10：11/4" 12：11/2"
16：2" |
A1：0.04MPa
A2：0.35MPa |
Specification：
| Model |
Rated flow ℓ/min |
Max.operating
pressure mpa |
Cracking pressre mpa |
Weight kg |
| CRG-03 |
40 |
21 |
A1：0.04
A2：0.35 |
2.0 |
| CRG-06 |
125 |
21 |
4.0 |
| CRG-10 |
250 |
21 |
8.5 |
| CRNG-03 |
40 |
21 |
2.4 |
| CRNG-06 |
125 |
21 |
3.5 |
| CRNG-10 |
250 |
21 |
7.8 |
| CIT-03 |
40 |
21 |
0.2 |
| CIT-04 |
60 |
21 |
0.4 |
| CIT-06 |
125 |
21 |
0.7 |
| CIT-08 |
150 |
21 |
1.0 |
| CIT-10 |
250 |
21 |
2.1 |
| CIT-12 |
300 |
21 |
3.2 |
| CIT-16 |
400 |
21 |
4.8 |

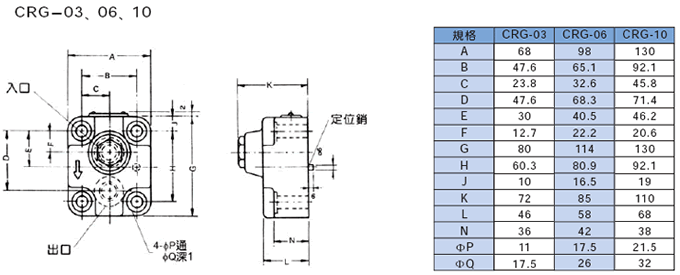

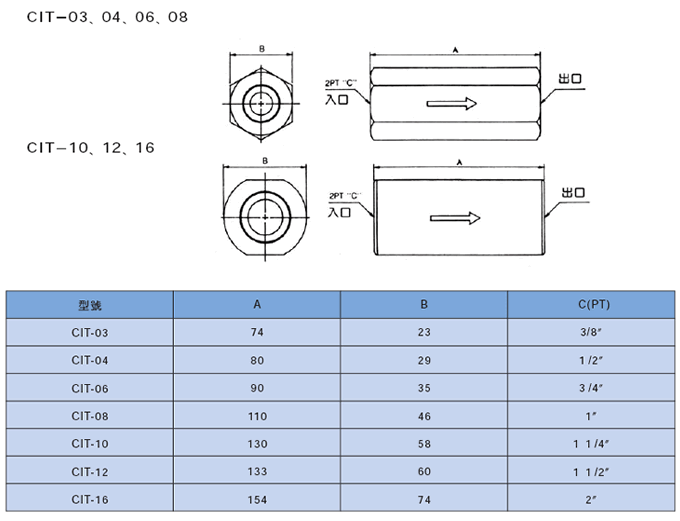

Dimension figure：
|
Remarks：
