Index > Operated Directional Control Valves > DCG

Operated Directional Control Valves：

1、Simple cam design of heart valves can be controlled to change the oil flow direction.
2、Installation of in line with ISO4401, CETOP, DIN24340, NFPA and other mounting surface specifications.

Further Information

How to order：

DC	G	-02	-NC	A
Series number	Type of connection	Valve size	Valve type	Cam's position
DC	G:sub-plate type t:threaded type	02：6 (1/4")	Nc：normal open no：normal close	A:“standard” right b: left c:upper

Specification：

Model	Max.Flow ℓ/min	Max.Operated pressure mpa	Allowed back pressure mpa	Weight kg
DCG-02	30	25	7	1.4
DCT-02	30	25	7	1.4

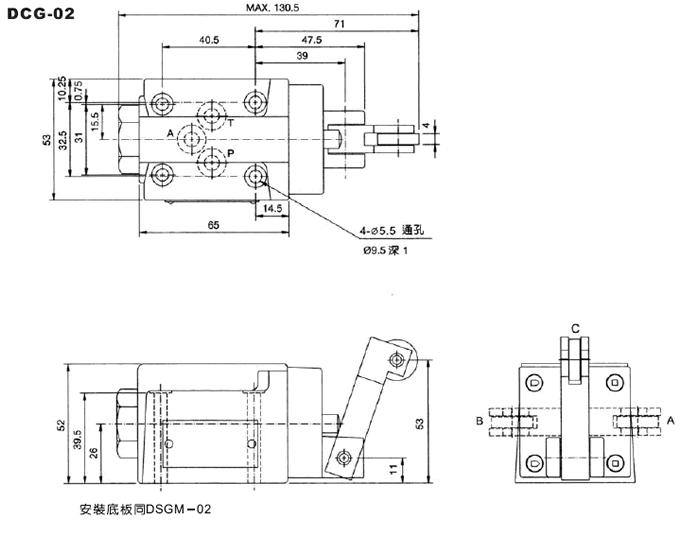

Dimension figure：

Remarks：Operated Directional Control Valves,The related model:DCG-02,DCT-02
