Index > Modular Solenoid Flow Control Valves > MFST

Modular Solenoid Flow Control Valves：

The use of the bypass throttle valve solenoid valve to switch the state to control a fast machine slow motion.

Further Information

How to order：

MFS	T	-02	-A2	6
Series number	Flow control port	Valve size	Solenoidtype	HZ
MFS	T:t port (standard) a:a port b:b port p:p port	02： 1/4" 03： 3/8"	A1： AC 110V A2： AC 220V A3： AC 380V D1： DC 12V D2： DC 24V	5： 50HZ 6： 60HZ

Specification：

Model	Max.operating pressure mpa	Within flow rate adj.range mpa	Free.flow ℓ/min	Weight kg
MFSP-02	7	0.05∼4 0.05∼8	30	2.3
MFST-02			30	2.3
MFSA-02			30	2.3
MFSB-02			30	2.3
MFSP-03			60	3.3
MFST-03			60	3.3
MFSA-03			60	3.3
MFSB-03			60	3.3

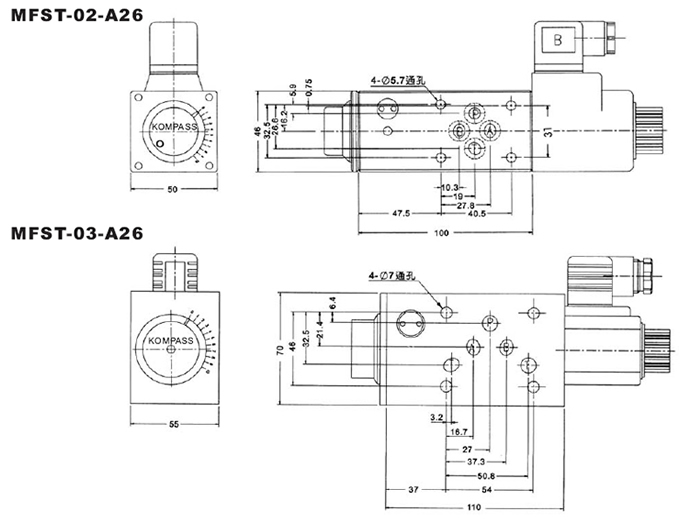

Dimension figure:

Remarks：Modular Solenoid Flow Control Valves,The related model:MFSP-02,MFST-02,MFSA-02,MFSB-02,MFSP-03 and so on
