Index > Modular Pilot Operated Check Valves > MPA

Modular Pilot Operated Check Valves：

1、Pilot control one-way flow of design.(Low Noise Type)
2、No pipe connections, opportunities and piping to reduce the cost of oil spills.
3、Oil spill is small, low vibration, low noise, easy maintenance.
4、Body compact combination to reduce the system requirements for space.
5、To prevent the asphalt oil spills, resulting in hydraulic cylinder actuation.
6、Applicable to ISO, CETOP, NFPA and the international standard DIN mounting surface.

Further Information

How to order：

MP	A	-02	-B
Series number	Action from	Valve size	Cracking pressure
MP MPD	A:a port B:b port W:a.b port	02： 1/4" 03： 3/8" 04：1/2" 06：3/4"	A:0.5 B:3.5

Specification：

Model		Max.flow ℓ/min	Cracking pressure mpa	Rated pressure mpa	Weight kg
General	Double	Max.flow ℓ/min	Cracking pressure mpa	Rated pressure mpa	General	Double
MPA-02	-	02: 40 03: 80 04: 200 06:300	A: 0.05 B: 0.35 C: 0.46	25	-	1.2
MPA-03	MPDA-03			25	4	3.6
MPA-04	-			25	-	5.5
MPA-06	-			25	-	12
MPB-02	-			25	-	1.2
MPB-03	MPDB-03			25	4	3.6
MPB-04	-			25	-	5.5
MPB-06	-			25	-	12
MPW-02	-			25	-	1.2
MPW-03	MPDW-03			25	5	3.6
MPW-04	-			25	-	5.5
MPW-06	-			25	-	12.6

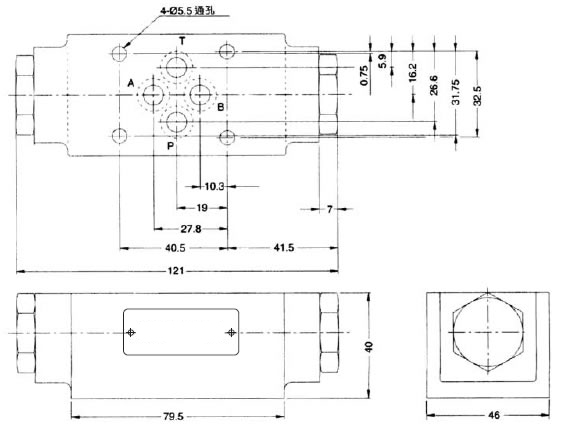

Dimension figure：

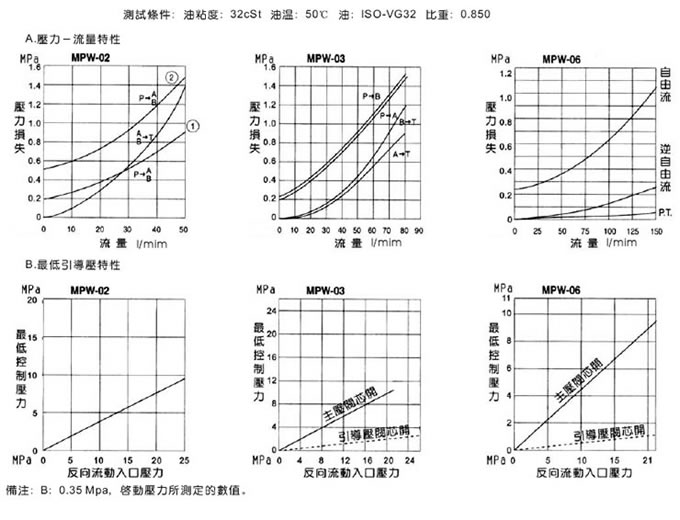

Function curve：

Remarks：Modular Pilot Operated Check Valves,The related model:MPA-02,MPA-03,MPA-04,MPA-06,MPB-02 and so on
