1、Oil pump installed in the side, to prevent the pump oil absorption when the dirt to ensure the pumping system.
2、To extend the service life of pumps and systems to reduce the work arising from the joint continued failures.
3、Specification is complete, flow range of 12 ℓ/ min-1000 ℓ/ min, filtration precision sub 100,120,150 Mesh (standard), can also provide higher filtering accuracy, please contact our Technology Department.
4、Max working degree 90
5、Applicable to all kinds of mineral oil, gasoline and other liquids.
6、Can be customized according to customer request other specifications.
|
Further Information
How to order：
| SFW |
-02 |
| Series number |
Filter size |
| SFW |
Refer to
specification |
Specification：
| Model |
Fow ℓ/min |
Filtration μ |
Weight kg |
A |
B |
C |
D |
E |
| SFW-02A |
12 |
120 |
0.05 |
1/4" |
22 |
63 |
50 |
43 |
| SFW-02B |
14 |
120 |
0.07 |
1/4" |
22 |
112 |
100 |
43 |
| SFW-02C |
20 |
120 |
0.10 |
1/4" |
22 |
112 |
100 |
60 |
| SFW-03A |
15 |
120 |
0.05 |
3/8" |
22 |
63 |
50 |
43 |
| SFW-03B |
17 |
120 |
0.07 |
3/8" |
22 |
112 |
100 |
43 |
| SFW-03C |
25 |
120 |
0.11 |
3/8" |
22 |
112 |
100 |
60 |
| SFW-04B |
30 |
120 |
0.12 |
1/2" |
30 |
112 |
100 |
60 |
| SFW-04C |
33 |
120 |
0.18 |
1/2" |
30 |
161 |
145 |
67 |
| SFW-06 |
50 |
120 |
0.19 |
3/4" |
36 |
161 |
145 |
67 |
| SFW-08 |
100 |
120 |
0.33 |
1" |
46 |
210 |
190 |
87 |
| SFW-10 |
180 |
120 |
0.46 |
11/4" |
55 |
225 |
203 |
107 |
| SFW-12 |
246 |
120 |
0.73 |
11/2" |
65 |
253 |
232 |
127 |
| SFW-16 |
384 |
120 |
0.88 |
2" |
75 |
330 |
307 |
127 |
| SFW-20 |
700 |
120 |
1.19 |
21/2" |
90 |
370 |
348 |
160 |
| SFW-24 |
800 |
120 |
1.40 |
3" |
105 |
460 |
435 |
160 |
| SFW-32 |
1000 |
120 |
3.09 |
4" |
145 |
458 |
443 |
210 |

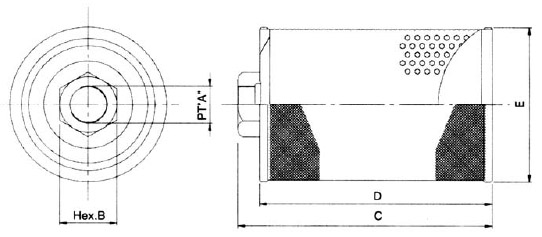

Dimension figure：
|
Remarks：
