Index > Filters With Air Breathers > TOYO

Filters With Air Breathers：

1、Fuel filler assembly in the fuel tank above the fuel tank to keep the outside air flow, and to prevent outside air in the dust mixed with the fuel tank.
2、Filter design for removable for easy cleaning replacement.
3、AB-type air filter thread has been processed, can be screwed directly to the fuel tank.
Notes: 1, TOYO-50A for a fixed oil network.
2, TOYO-30 fixed plate and the fuel tank gasket 3 hole.

Further Information

How to order：

TOYO	-50	-	-P	-R
Series number	Valve size	Type	Material	Cover color
TOYO	30 :Ø 30mm 50 : Ø50 mm	-:Standard A:lengthen	P:plastic S:steel	R:red W:silver by chrome-plating

Specification：

Model	Max.flow	Filtration μ	Weight kg
TOYO-30	270	400	0.15
TOYO-50	550	400	0.19
TOYO-50A	870	500	0.30

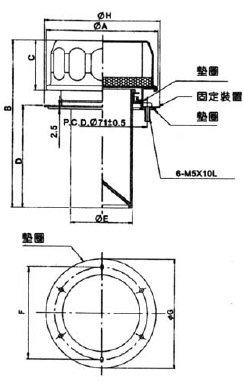

Dimension figure：

Remarks：Filters With Air Breathers,The related model:TOYO-30,TOYO-50,TOYO-50A
